Pion parton distribution function in light-front holographic QCD

Figures(4)

Get Citation
Lei Chang, Khépani Raya and Xiaobin Wang. Pion parton distribution function in light-front holographic QCD[J]. Chinese Physics C. doi: 10.1088/1674-1137/abae52
Lei Chang, Khépani Raya and Xiaobin Wang. Pion parton distribution function in light-front holographic QCD[J]. Chinese Physics C.  doi: 10.1088/1674-1137/abae52 shu
Milestone
Received: 2020-05-09
Article Metric

Article Views(1590)
PDF Downloads(35)
Cited by(0)
Policy on re-use
To reuse of Open Access content published by CPC, for content published under the terms of the Creative Commons Attribution 3.0 license (“CC CY”), the users don’t need to request permission to copy, distribute and display the final published version of the article and to create derivative works, subject to appropriate attribution.
通讯作者: 陈斌, bchen63@163.com
  • 1.

    沈阳化工大学材料科学与工程学院 沈阳 110142

  1. 本站搜索
  2. 百度学术搜索
  3. 万方数据库搜索
  4. CNKI搜索

Email This Article

Title:
Email:

Pion parton distribution function in light-front holographic QCD

    Corresponding author: Lei Chang, leichang@nankai.edu.cn
  • School of Physics, Nankai University, Tianjin 300071, China

Abstract: The valence-quark distribution function of the pion has been of interest for decades; particularly, the profile it should adopt when $x\to1$ (the large-x behavior) has been the subject of a long-standing debate. In the light-front holographic QCD (LFHQCD) approach, this behavior is controlled by the so-called reparametrization function, $w_\tau(x)$, which is not fully determined from first principles. We show that, owing to the flexibility of $w_\tau(x)$, the large-x profile $u^{\pi}(x)\sim (1-x)^{2}$ can be contained within the LFHQCD formalism. This is in contrast to a previous LFHQCD study (Guy F. de Teramond et al., Phys. Rev. Lett., 120(18), 2018) in which $u^{\pi}(x)\sim (1-x)^{1}$ was found instead. Given our observations, augmented by perturbative QCD and recent lattice QCD results, we state that the large-x exponent of “2” cannot be excluded.

    HTML

1.   Introduction
  • During the development of parton models, in the 1970s, a connection between the proton electromagnetic form factors (obtained via an exclusive process) and their structure functions (inferred from deep inelastic scattering) was realized by Drell-Yann [1] and West [2]. Their findings yielded the so-called Drell-Yan-West relation (DYW), which entails that, when the momentum transfer ($ -t = Q^2 $) becomes asymptotically large, the proton electromagnetic form factor (EFF) decays as

    $ F_{1 }^{p}(t)\sim \frac{1}{(-t)^{\tau - 1}}\;, $

    (1)

    while the corresponding parton distribution function (PDF) exhibits the large-x (i.e., $ x\to1 $) behavior of

    $ u^{p}(x)\sim (1-x)^{2\tau - 3}\;. $

    (2)

    Here, x is the longitudinal momentum fraction carried by the parton (or Bjorken-x) [3], and $ \tau $, called twist, denotes the number of $ \tau $-components of the hadron state. In a subsequent work by Ezawa [4], it was shown that the pion violates the DYW relation. This can be attributed to the different number of constituents and the spin. It is seen that, while the EFF exhibits the same asymptotic profile for both hadrons, according to Eq. (1), the pion parton distribution function adopts the large-x form

    $ u^\pi(x)\sim (1-x)^{2\tau - 2}\;. $

    (3)

    The leading twist ($ \tau = 3 $ for proton, $ \tau = 2 $ for pion) entails the well-known $ 1/(-t)^2 $ and $ 1/(-t) $ power-law-like decays of the proton and pion EFFs [5], respectively, and the predicted $ x\to1 $ behaviors of the PDFs are

    $ u^p(x)\sim(1-x)^3\;, $

    (4)

    $ u^\pi(x)\sim(1-x)^2\;. $

    (5)

    Those patterns are further supported by perturbative quantum chromodynamics (pQCD) [5-7]. It is worth clarifying that Eqs. (4, 5) are valid on a certain energy scale that marks the boundary between strong and perturbative dynamics [8-10]. Above this scale, anomalous dimensionality increases logarithmically and so do the large-x exponents [11].

    Assuming a theory in which quarks interact via the exchange of vector-bosons, asymptotically damped as $ (1/k^2)^\beta $, the pion case in Eq. (4) generalizes to [12]

    $ u^\pi(x)\sim (1-x)^{2\beta}\;. $

    (6)

    Hence, the large-x behavior of the valence-quark PDF is a direct measure of the momentum dependence of the underlying interaction [6, 7, 12, 13].

    In the novel approach of light-front holographic QCD (LFHQCD) [14, 15], it was suggested that the DYW relation is preserved for both the proton and pion [16]. Thereby, this framework predicts a valence pion PDF, which decays from the leading-twist-2 term as

    $ u^\pi(x)\sim (1-x)^1\;, $

    (7)

    feeding the controversy provoked by the E615-Experiment leading order (LO) analysis [17], which favors a large-x exponent of “1” in an apparent contradiction with parton models and pQCD. Many theoretical and phenomenological approaches have been considered in this debate, e.g., [8-10, 12, 13, 16, 18-27]. Playing a key role in this controversy, the analysis of Aicher et al. [19] showed that, if a next-to-leading order (NLO) treatment of data is performed and soft-gluon resummation is considered, it is possible to recover the pQCD prediction. From a different perspective, the $ x\to1 $ profile of Eq. (5) is also favored by a recent lattice QCD (lQCD) result [22], in which a novel “cross-section” (CS) technique [22, 24] was employed to obtain the point-wise shape of the pion PDF.

    Furthermore, it is important to unravel the proton and pion properties together. Consider, for example, the origin and difference of their masses: if we accept quantum chromodynamics (QCD) as the fundamental underlying theory of strong interactions (and we do), it is necessary to simultaneously explain the masslessness of the pion and the much larger mass of the proton [28-31]. Similarly, it is vital to obtain a clear picture of the proton and pion parton distributions, using the same approach. QCD predicts the profiles of Eqs. (4), (5); thus, we need to explain how those behaviors can (or cannot) take place.

    In this manuscript, we revisit Ref. [16] to study the pion valence-quark PDF in the LFHQCD approach. Therein, the authors present an appealing way to parameterize the PDFs and generalized parton distributions (GPDs), starting from an integral representation of the EFFs. They claim that the falloff of the pion PDF at $ x\to1 $ is an unresolved issue. Our aim is to show that the large-x behavior of Eq. (3) can be perfectly accommodated within the same LFHQCD formalism, without compromising the EFF while maintaining the correct counting rules for the proton.

2.   Counting rules in LFHQCD
  • The hadronic form factor can be expressed in terms of an effective single-particle density [32]

    $ F(Q^2) = \int_0^1{\rm d}y \;\rho(y,Q)\;, $

    (8)

    where $ Q^2 = -t $ is the photon momentum. The simplicity of the bulk-to-boundary propagators, in the soft-wall holographic model [33], enables to obtain an analytically tractable expression for $ \rho(y,Q) $ [14, 15, 33]. For an arbitrary twist-$ \tau $:

    $ \rho(y,Q) = (\tau-1)(1-y)^{\tau-2}y^{-t/4\lambda}, $

    (9)

    such that, given the definition of Eq. (8), the form factor can be simply expressed as

    $ F_{\tau}(t) = (\tau-1)B(\tau-1,1-t/4\lambda)\;, $

    (10)

    where $ B(u,v) $ corresponds to the Euler beta function (EBF), and $ \lambda $ is a universal mass scale that will be defined later. Notice that if $ \tau $ takes integer values (i.e., the anomalous dimensionality is not taken into account), the EBF generates mass poles in the time-like axis. Those are eventually associated with the $ \rho $-meson and its excitations, but at this point, the location of the poles is inadequate [15]. A simple amendment consists of shifting the arguments of the EBF, as follows:

    $ \begin{split} F_{\tau}(t)& = \frac{1}{N_{\tau}}B\left(\tau-1,\frac{1}{2}-\frac{t}{4\lambda}\right)\\ & = \frac{1}{N_{\tau}}\int_{0}^{1} {\rm d}y (1-y)^{\tau-2} y^{-t/4\lambda-\frac{1}{2}}\;, \end{split} $

    (11)

    where $ N_\tau = \Gamma(1/2)\;\Gamma(\tau-1)/\Gamma(\tau-1/2) $. For integer values of $ \tau $, it generates the following pole structure:

    $ F_\tau(t)\sim \frac{1}{(1-t/M_0^2)(1-t/M_1^2)\cdots (1-t/M_{\tau-2}^2)}\;, $

    with $ M_n^2 = 4\lambda(n+1/2) $ and the universal scale $ \lambda $ fixed by the $ \rho $ meson mass [14, 34], $ \sqrt{\lambda} = 0.548 $ GeV = $ m_\rho/\sqrt{2} $. Thus, Eq. (11) corresponds to the integral representation of the form factor employed in Ref. [16], which we exploit throughout this work. Under the change of variable $ y = w_{\tau}(x) $ , one can write, more generally:

    $ F_{\tau}(t) = \frac{1}{N_{\tau}}\int_{0}^{1} {\rm d}x (1-w_{\tau}(x))^{\tau-2} w_{\tau}(x)^{-t/4\lambda-\frac{1}{2}}\frac{\partial w_{\tau}(x)}{\partial x}\, , $

    (12)

    where the reparametrization function, $ w_\tau(x) $, is constrained by the following conditions:

    $ w_{\tau}(0) = 0,\,\;\;\;w_{\tau}(1) = 1,\,\;\;\;\frac{\partial w_{\tau}(x)}{\partial x}\geqslant 0\, . $

    (13)

    Notice that we have not ruled out a $ \tau $-dependence in $ w_\tau(x) $, which is a key difference with respect to [16]. The zero-skewness valence-quark GPD is conveniently expressed as

    $ H_v^q(x,t): = H_v^q(x,\xi = 0,t) = q_{\tau}(x){\rm{e}}^{t f_{\tau}(x)}\;, $

    (14)

    which follows from the definition of the flavor-q form factor in terms of the GPD, $ F^q(t) = \int_0^1H_v^q(x,t) $. From Eq. (14) we identify the PDF and the profile function, $ q_\tau(x) $ and $ f_{\tau}(x) $, respectively; thus,

    $ q_{\tau}(x) = \frac{1}{N_{\tau}}(1-w_{\tau}(x))^{\tau-2} w_{\tau}(x)^{-\frac{1}{2}}\frac{\partial w_{\tau}(x)}{\partial x}\, , $

    (15)

    $ f_{\tau}(x) = \frac{1}{4\lambda}{\log}\left(\frac{1}{w_{\tau}(x)}\right)\,. $

    (16)

    Then, a simple form for $ w_{\tau}(x) $ is suggested:

    $ w_{\tau}(x) = x^{(1-x)^{g(\tau)}}{\rm{e}}^{-a_\tau(1-x)^{g(\tau)}}\;, $

    (17)

    where $ g(\tau),a_\tau\;>\; 0 $. It is easy to check whether the above expression meets the reparametrization invariance conditions of Eqs. (13). First, an expansion of Eq. (17) around $ x = 0 $ yields

    $ w_{\tau}(x) = x\;[1+g(\tau)(a_\tau - \ln (x))x+{\cal O}(x^2) ]{\rm e}^{-a_\tau}\;, $

    (18)

    which implies $ w_{\tau}(0) = 0 $. Taking the logarithm of Eq. (17), one obtains

    $ \ln [w_{\tau}(x)] =(1-x)^{g(\tau)}[\ln(x)-a_\tau] \;, $

    (19)

    such that $ \ln [w_{\tau}(1)] = 0 $, from which $ w_{\tau}(1) = 1 $. Finally, the derivative constraint in Eq. (13) can be checked by applying the chain rule on

    $ \frac{\partial \ln [w_{\tau}(x)]}{\partial x} = \frac{1}{w_\tau(x)}\frac{\partial w_{\tau}(x)}{\partial x}\;, $

    (20)

    noticing that $ w(x)> 0 $ and $ \frac{\partial \ln [w_{\tau}(x)]}{\partial x} \geqslant 0 $, when $ x \in [0,1] $.

    At this point it, is worth stressing that $ w_{\tau}(x) $ is neither unique nor derived from first principles; however, its particular form can be motivated by both mathematical and physical constraints. Our proposed profile for $ w_\tau(x) $ adopts the desired Regge behavior at small-x [15, 16] while also satisfying the constraints of Eq. (13), which are necessary for the reparametrization invariance of the EBF. This invariance property ensures that the form factors we obtain are identical to those from Ref. [16], thus preserving the desired properties, including the desired large-t falloff:

    $ F_{\tau}(Q^{2})\sim \left(\frac{1}{-t}\right)^{\tau-1}\;, $

    (21)

    That is, the correct power-law asymptotic behavior of the form factor [4-6] is faithfully reproduced. Focusing on the valence-quark PDF, Eqs. (15-17) imply that the $ x\to1 $ leading power of $ q_{\tau}(x) $ exhibits the following $ \tau $-dependence:

    $ q_{\tau}(x)\sim (1-x)^{h(\tau)}\;, $

    (22)

    where $ h(\tau) = (\tau-1)g(\tau)-1 $. Owing to the arbitrariness of the choice of $ g(\tau) $, LFHQCD cannot predict its precise form or, consequently, the exact counting rules. However, it is this flexibility that allows us to recover the corresponding counting rules for both the pion and proton, according to Eqs. (4), (5). Given the simplicity of Eq. (22), we propose the following rules for the PDFs:

    $ {\rm{Rule-I}}: (1-x)^{2\tau-3} \,,\;\; {\rm{with}} \,\;\;\; g(\tau) = 2\;. $

    (23)

    $ {\rm{Rule-II}}: (1-x)^{2\tau-2} \,,\; \;{\rm{with}} \,\;\;\; g(\tau) = 2+\frac{1}{\tau-1} \;. $

    (24)

    Thus, it is inferred from Eq. (22) that the spin$ -\frac{1}{2} $ relation, Eq. (2), can be satisfied if Rule-I is chosen, while the spin$ -0 $ counterpart, Eq. (3), holds if Rule-II is selected instead. The effects of applying these rules on the pion valence-quark PDF will be tested numerically in the following section.

3.   Pion valence-quark PDF
  • Consider the twist-4 pion valence-quark PDF as

    $ u^{\pi}(x;\zeta) = (1-\gamma)q_{\tau = 2}(x;\zeta)+\gamma q_{\tau = 4}(x;\zeta)\;, $

    (25)

    with normalization $ \int_0^1 {\rm d}x \;u_\pi(x;\zeta) = 1 $ and $ \gamma = 0.125 $. The parameter $ \gamma $ controls the strength of the twist-$ 4 $ component. It is fixed by the meson cloud contribution determined in [14]. The PDF is defined on an intrinsic scale $ \zeta = \zeta_1 $, which is set as $ \zeta_1 = 1.1\pm 0.2 $ GeV to keep in line with previous works [16, 35]. Then, continuum analysis [8-10] is employed for benchmarking, to estimate

    $ < x >_{\zeta_1}^u = \int_0^1 {\rm d}x\;x u^\pi(x;\zeta_1)\approx 0.26\;, $

    (26)

    such that the $ a_2 $ coefficient in Eq. (17) can be determined. This is additionally cross-checked from the value $ < x >_{\zeta_2}\approx 0.24 $, obtained at $ \zeta_2: = 2 $ GeV after the NLO evolution, compared to the lQCD estimates from Refs. [23, 25-27]. Furthermore, we find that this result is compatible with a recent determination from the xFitter collaboration [36]. To account for the impact of the twist-4 term, we also vary the ratio $ a_4/a_2 $ from $ 0.1 $ to $ 1 $. Only mild effects at intermediate values of x are observed. Figure 1 displays the valence-PDF data, evolved to $ \zeta_5: = 5.2 $ GeV, and their comparison with experimental and lattice data [17, 19, 22]. For contrast, we have also included a recent result from Dyson-Schwinger equations (DSEs) [9, 10]. The pion form factor is shown in Fig. 2; we compare the results with the JLab experimental results [37] and with the DSE prediction results from Ref. [38]. In addition, the corresponding zero-skewness valence-quark GPD, for Rule-II, is shown in Fig. 3.

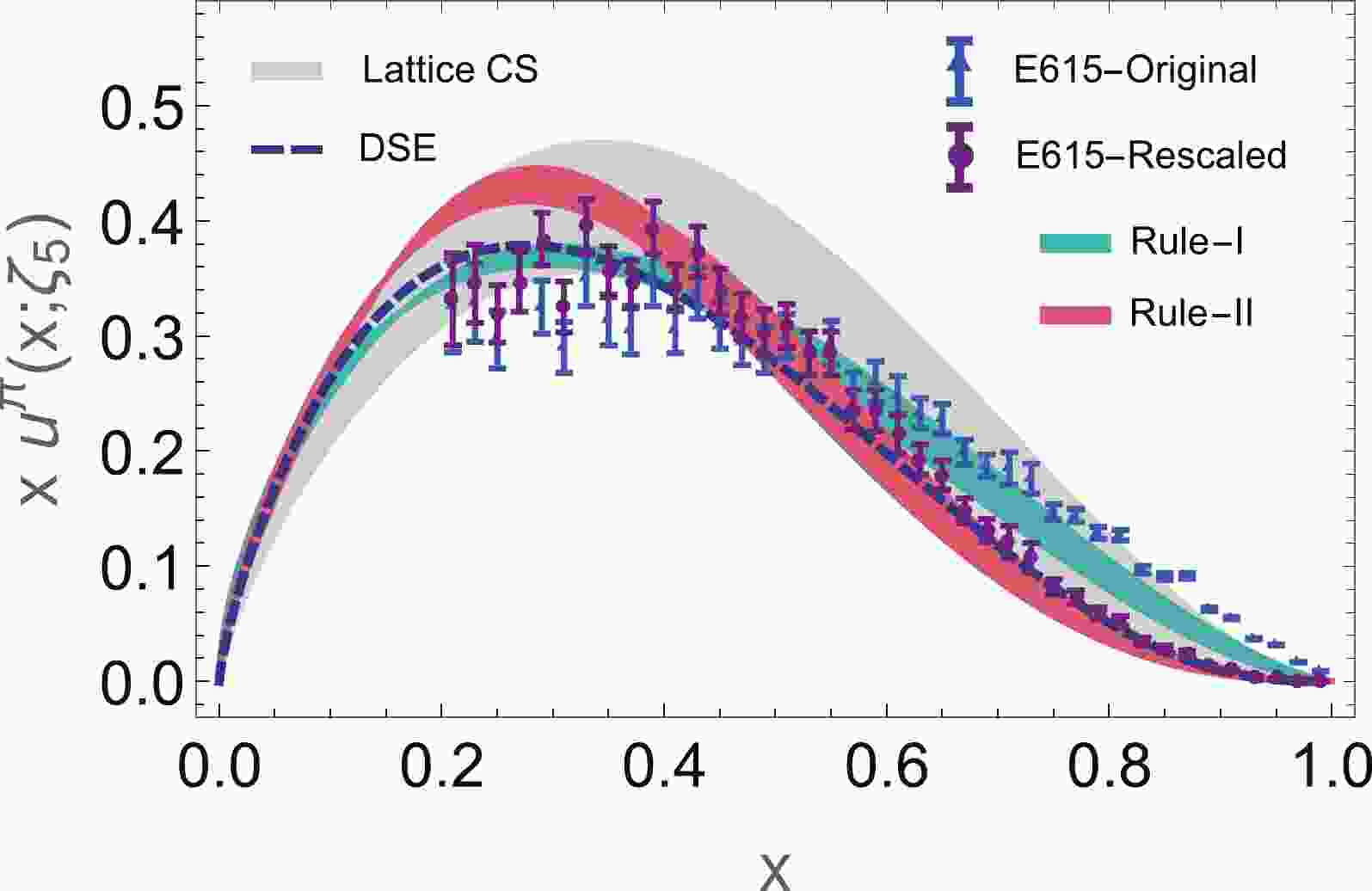

    Figure 1.  (color online) Valence-quark pion PDF. Obtained NLO results at $ \zeta_5 = 5.2 $ GeV, from the rules in Eq. (23). The corresponding (blue and red) error bands account for the uncertainty in the initial scale, $ \zeta_1 = 1.1\pm0.2 $ GeV, and the variation of $ a_4/a_2 = 0.1 $ to $ 1 $. The broadest band (gray), corresponds to the novel lQCD “CS” result from [22], and the dashed line depicts the DSE prediction [9, 10]. Data points: (triangles) LO extraction “E615-Original” [17] and (circles) the NLO analysis “E615-Rescaled” of Ref. [19].

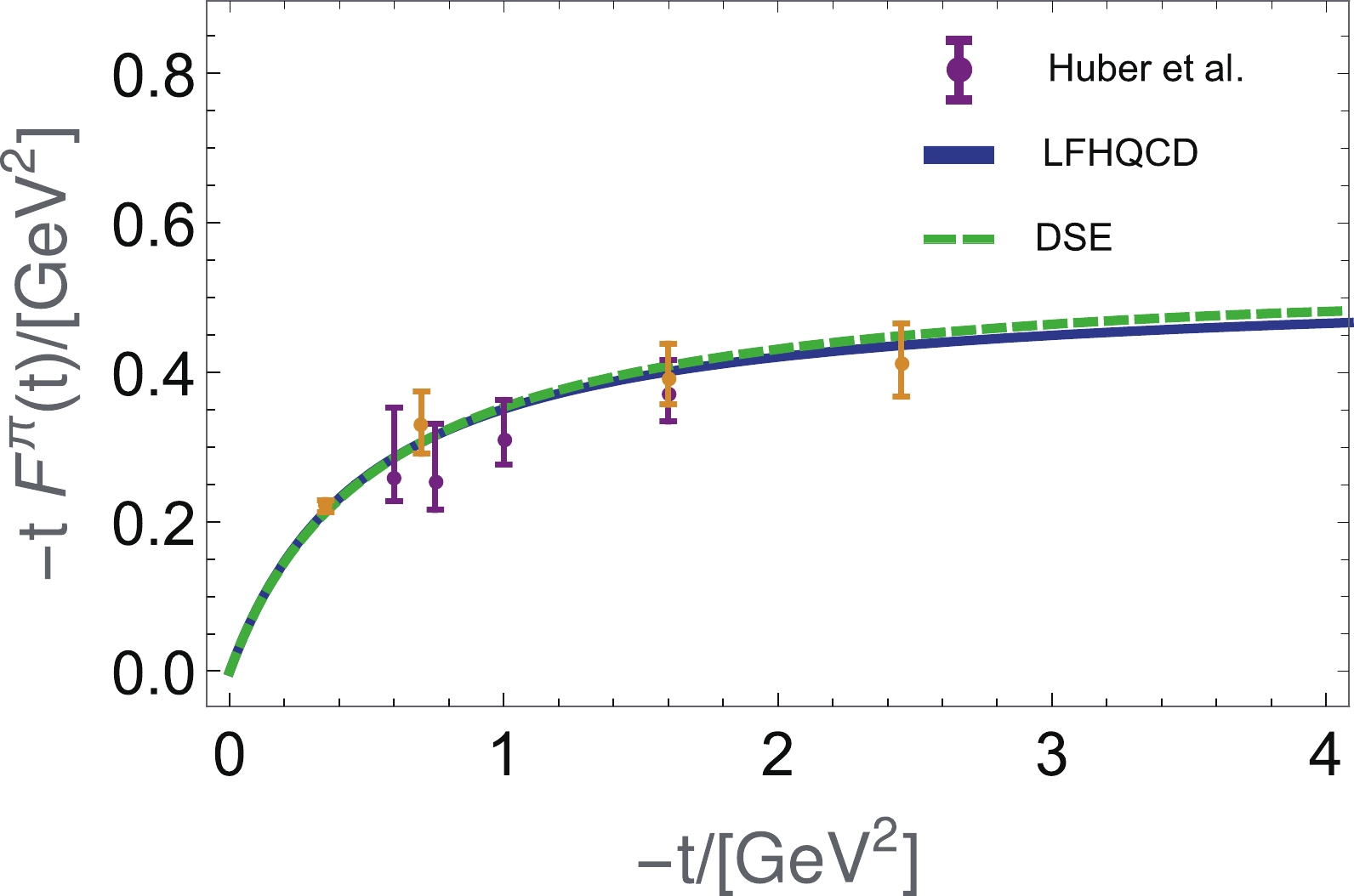

    Figure 2.  (color online) Pion form factor. LFHQCD result and its comparison with the DSE prediction result [38] and experimental data [37]. Interestingly, the LFHQCD and DSE results lie almost on top of each other.

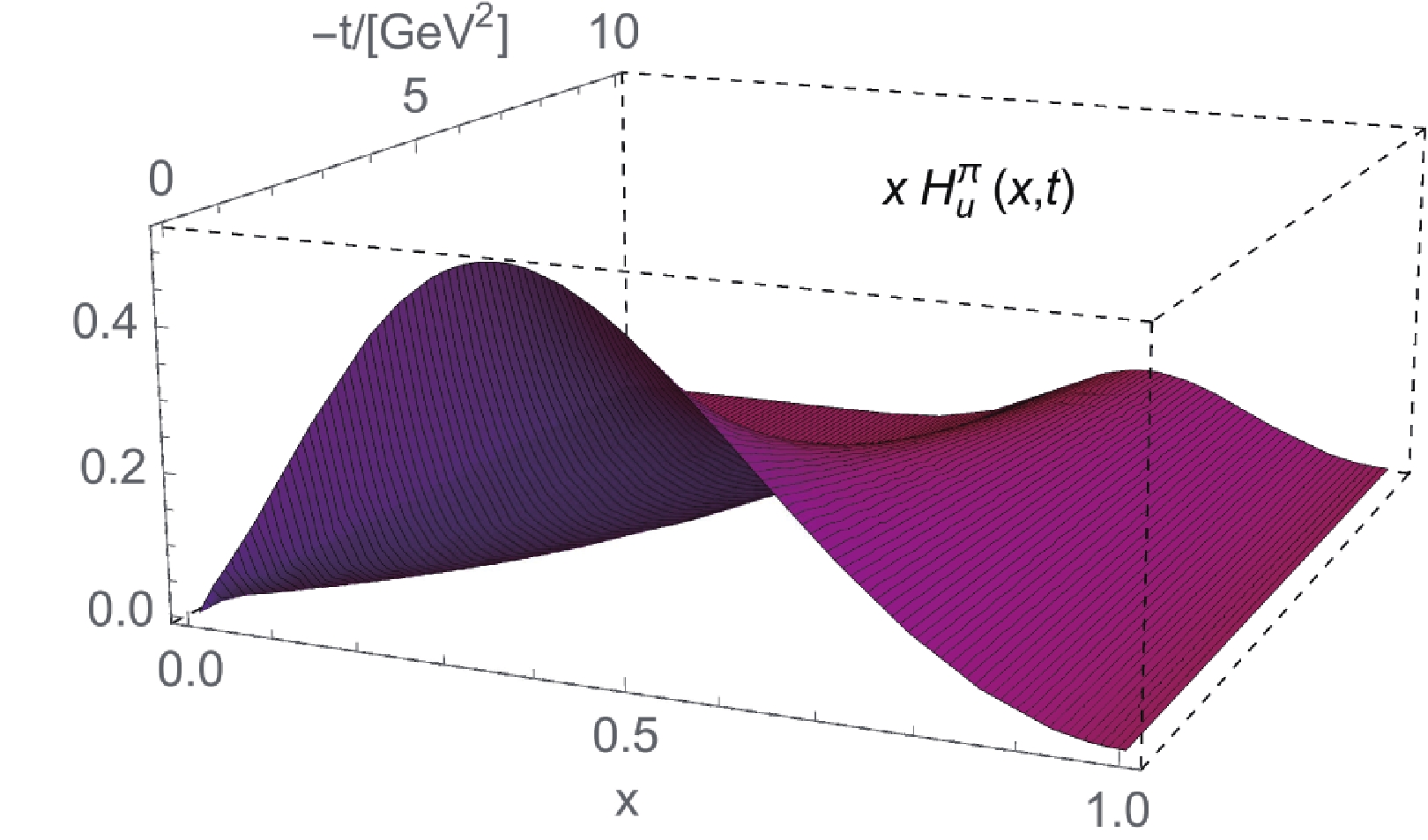

    Figure 3.  (color online) Valence-quark pion GPD. t-dependence of the zero-skewness valence-quark GPD, $ H_u^\pi(x,t) $. The plot above corresponds to Rule-II in Eq. (23), at the initial scale $ \zeta_1 $.

    It is clear that Rule-I produces a PDF that closely corresponds to the original experimental data [17], while the analogous Rule-II matches the rescaled data from Ref. [19]. Both rules produce the same well-behaved EFF, with the correct large-t power-law decay, but only in the second case one obtains the $ x\to 1 $ behavior of the PDF predicted by pQCD. This is readily achieved in the DSE formalism [8-10]: its direct connection with QCD ensures that perturbative limits are recovered, and so is the relation between the asymptotic behavior of the gluon with the large-x profile of the valence-quark PDF [12]. Moreover, state-of-the-art lQCD results [22] on the point-wise form of the PDF also establish that the asymptotic form of Eq. (5) is preferred.

    It is noteworthy that, even though the pion valence-quark PDF obtained from Rule-I differs from that computed in [16], the evolved results are compatible, as can be seen in Fig. 4. This is not surprising, since the corresponding reparametrization function is not dramatically different from its counterpart in [16]. The most noticeable differences occur in the intermediate range of $ x $, around $ x \approx 0.1 - 0.4 $, but the PDFs are quite similar outside this domain (thus, the large-x behavior is not compromised). We would expect something similar for the case of the proton. Moreover, as explained in the previous section, owing to the reparametrization invariance of the EBF, our Rule-I and the counting rule from [16] produce the same proton EFF. Thus, although it is not included in the present manuscript, we expect Rule-I to produce a realistic picture for the proton. These observations encourage us to select Rule-I for the case of the proton and Rule-II when studying pions, for an internally consistent description based on the LFHQCD formalism.

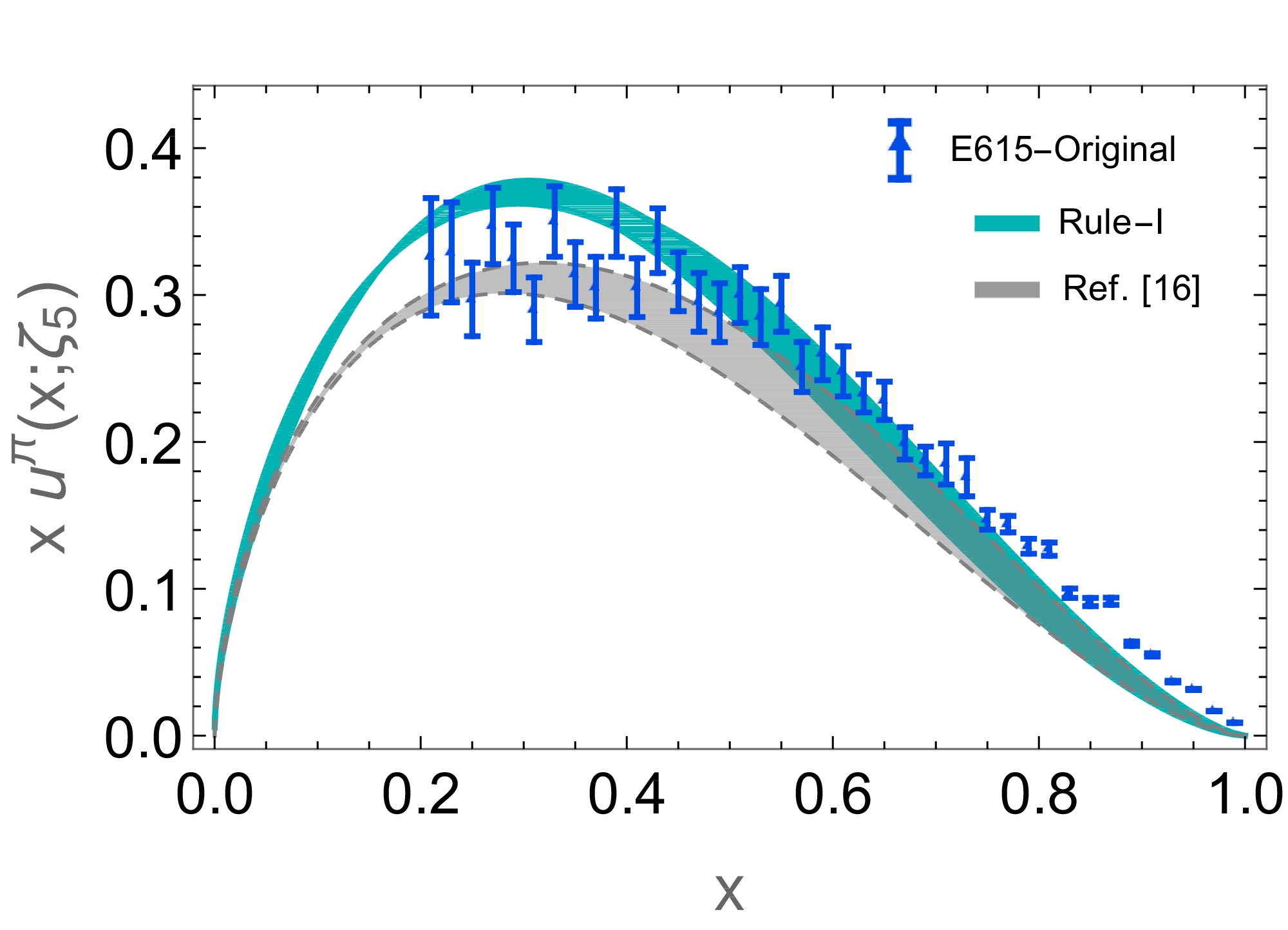

    Figure 4.  (color online) Valence-quark pion PDF. Obtained NLO results at $ \zeta_5 = 5.2 $ GeV, for Rule-I in Eq. (23), and their comparison with the prediction results in Ref. [16]. In both cases, the large-x exponent of “1” prevails. The corresponding error bands account for the uncertainty in the initial scale, $ \zeta_1 = 1.1\pm0.2 $ GeV; our result also considers the variation of $ a_4/a_2 = 0.1 $ to $ 1 $. Data points: (triangles) LO extraction “E615-Original” [17].

4.   Summary and conclusions
  • We have reanalyzed the LFHQCD approach of Ref. [16] for the pion valence-quark PDF, $ u^\pi(x) $. It has been proven that given the flexibility of the reparametrization function, $ w_\tau(x) $, it is in fact possible to accommodate a large-x behavior of $ u^\pi(x)\sim(1-x)^{2\tau-2} $ within this framework. In addition to agreement with the rescaled experimental data [19], our conclusions about $ u^\pi(x) $ are compatible with the Ezawa findings [4] and the predictions from pQCD [6, 7]. Recent continuum [9, 10] and sophisticated lQCD studies [22] also favor this endpoint form. Owing to this confluence of vastly different approaches, and given our observations, we state that the $ u^\pi(x)\sim (1-x)^2 $ profile can be contained within the LFHQCD formalism and cannot be excluded. This has also been explored recently in the related approach of AdS/QCD [39]. Notably, the form factors remain unaltered regardless of the chosen rule, as a consequence of the reparametrization invariance of the EBF. Thus, the pion EFF exhibits a remarkable agreement with the experimental data and DSE predictions, while also manifesting the correct power law at large-t. Our Rule-I result for the pion valence-quark PDF, on the experimental scale, differs moderately from the one obtained in [16] for a limited domain, $ x\approx 0.1 - 0.4 $; outside this range, in particular, in the large-x regime, the agreement is perfect. Therefore, we expect something similar to happen for the proton case. With these ideas in mind, we can sketch how a concurrent description of the proton and pion distribution functions, which agrees with pQCD, can be achieved within this formalism if the counting rules are chosen accordingly: we encourage the use of Rule-I for the proton and Rule-II for the pion.

    We acknowledge helpful conversations with Yuan Sun.
